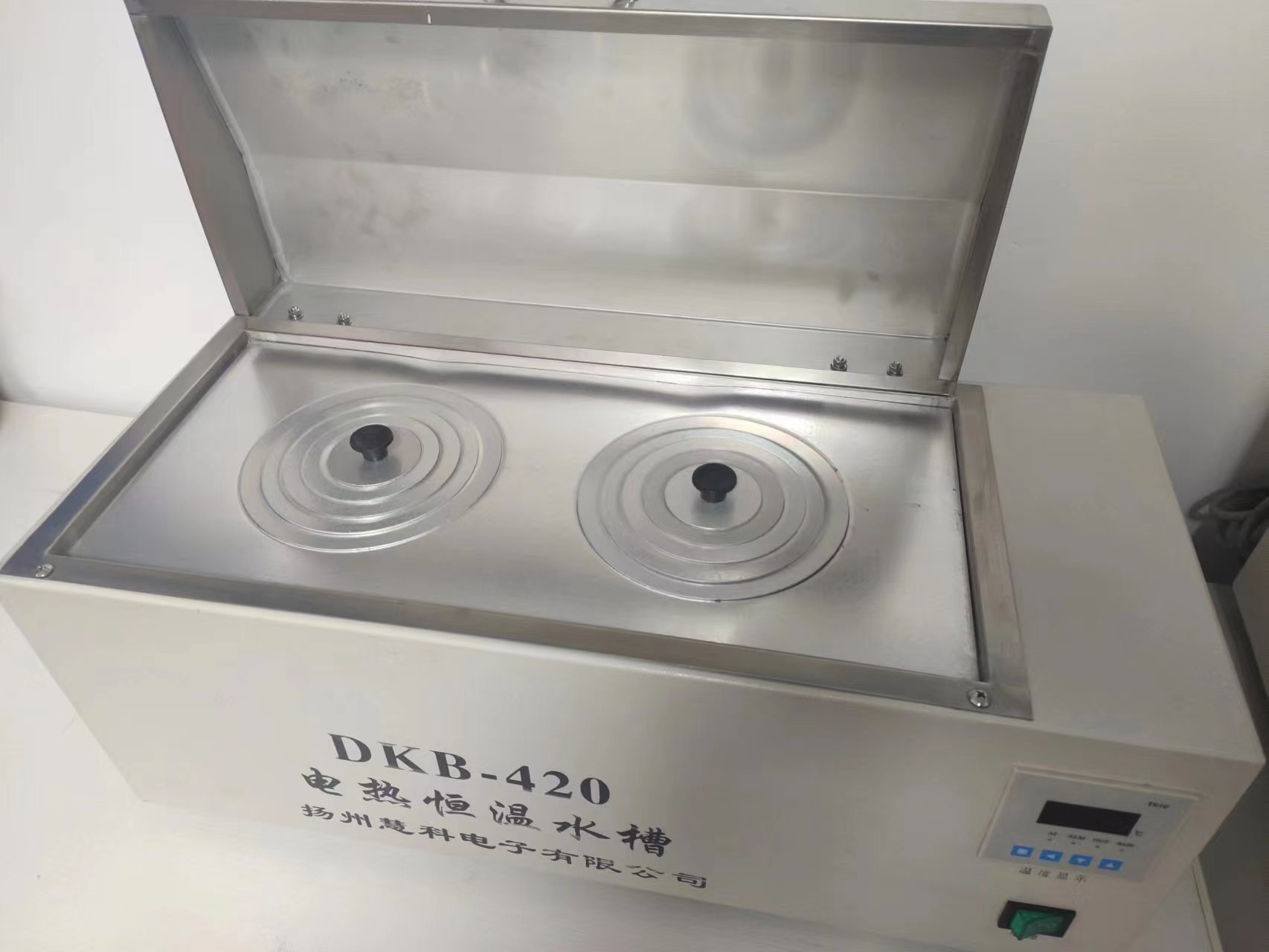

电热恒温水槽

了解更多

    产品详情



    用途概述Summary



    广泛用于大专院校、工矿企业和科研单位等作精密恒温和辅助加热之用。
    It is suitable for the fieds of medical health,hospital,school,factory,mine,scientific research as the precision thermostatic and auxiliary heating device.

    产品特点Features

    ◆ 采用不锈钢内胆,制造新颖美观。
    ◆ 数显、微电脑控制,带定时功能。
    ◆ 超温声光跟踪报警,使样品得到可靠保护。
    ◆具有上下超低温报警功能 ,可设定上下超温±1.0℃报警。
    Ⅰ类设备三芯电源线,具有接地保护装置。
    ◆  1.Adopt the stainless steel liner and top cover,with new and beautiful shape.
    ◆  2.Control temperature with the high accurate temperature controller,thetemperature control is accurate and reliable.
    ◆  3.Setting and determining temperature are all of digital display,with the following alarm function.
    ◆  4.It has the upper and lower ultra-low temperature alarm function, and can set the upper and lower over temperature alarm of ± 1.0 ℃.
    Class I equipment three core power cord with grounding protection device.

    选购件:
    1. 智能型液晶程序温度控制器(型号:YDKB)
    2. RS485接口

    Options:
    1.Intelligent programable temperature controller(Model:YDKB)
    2.RS485 socket


    技术参数Specifications

    参数Parameters
    型号 Model
    DKB-420 DKB-600
    电源电压
    Electrical Requirements
    AC220V 50Hz
    输入功率
    Input Power
    1000W 1400W
    控温范围
    Temperature Range
    Rt+5℃~100℃
    恒温波动度
    Temperature Stability
    ±0.5℃
    温度均匀度
    Temperature uniformity
    ±0.5℃
    温度分辨率
    Temperature Control
    0.1℃
    容积
    Volume
    15L 30L
    内胆尺寸
    Interior Dimension
    (mm)W×D×H
    420×240×150 600×300×190
    定时范围
    Timing Range
    1~999min

    注:智能型液晶程序温度控制器为大屏幕液晶显示屏,多组数据一屏显示,使用方便,更具有人性化设计:可配RS485接口和电脑连接,通过电脑同步监控实验过程或记录实验数据。
    Note:Intelligent programable temperature controller is giant-screen liquid crystal display,groups-data display inone screen,easily operation:RS485 connection may link with computer to record data and control experiment.
