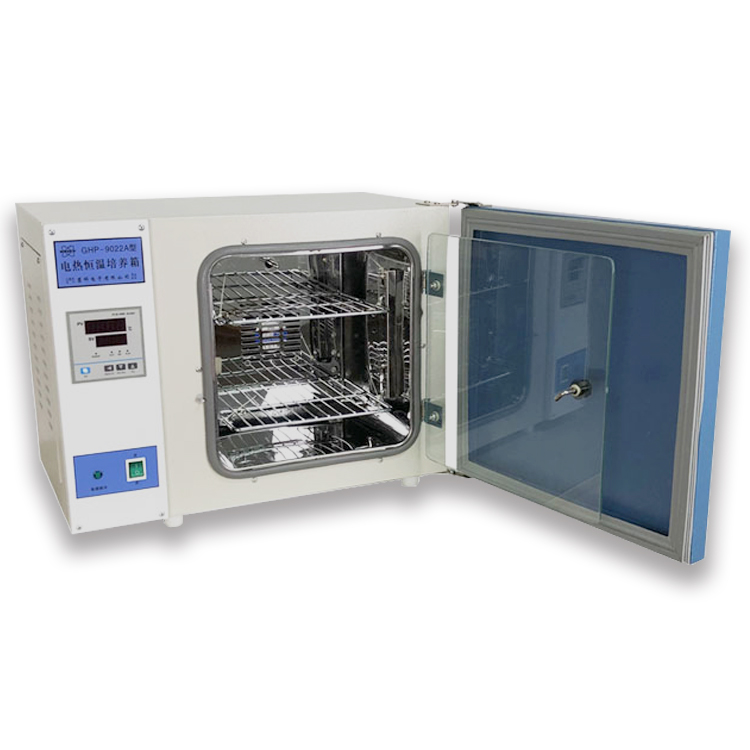

微电脑控制（带定时）Microprocessor control(with timing function)
用途概述Summary
供大专院校、生物、农业、科研等部门作储藏菌种、生物培养，进行科研的必须设备。
Provided as a necessary equipment for scientific research to colleges as well as biological Agricultural and scientific research departments for storage of mould and biology cultivation.
产品特点Features
◆微电脑控制器，带定时，使用稳定可靠。
◆独立限温报警系统，超过限制温度即自动中断，保证实验安全运行不发生以外。（选配）
◆外门内层有一层玻璃门，观察方便明了，箱门打开时，微风循环加热自动停止，无过冲之弊。
◆不锈钢内胆或优质冷轧钢板内胆，电热膜加热方式，加热速度快。
◆具有4～20mA标准电流信号，RS485接口可连接记录仪和计算机，能记录温度参数的变化状况。（选配）
◆Microprocessor controller with timing function ensure a stable and reliable use.
◆Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.(Option)
◆An glass door in chamber is easy for observation. When the glass door opens, breeze circulation and heating system will automatically stop, Which ensures no disadvantage of convection.
◆Specular stainless steel chamber, film heating method ensure a quick heating.
◆Recorder and printer are options which can print or record set parameters and trace variation curves of temperature (4～20mA standard signal).(Option)
选购件：
1、智能型程序液晶温度控制器(型号：YGHP)
2、打印机
3、独立限温控制器
Options:
1. Intelligent program LCD temperature controller (model: YGHP)
2. Printer
3. Independent temperature limit controller
技术参数Specifications
| 型号Model参数Parameters |
GHP-9022(A) |
GHP-9052(A) |
GHP-9082(A) |
GHP-9162(A) |
GHP-9272(A) |
| 电源电压Electrical Requirements |
AC220V 50Hz |
| 控温范围Temperature Range |
RT+5～65℃ |
| 温度分辨率Temperature Display Resolution |
0.1℃ |
温度波动度
Temperature fluctation |
±0.2℃ |
温度均匀度
Temperature uniformity |
±0.5℃ |
| 工作环境温度Ambient Temperature |
+5～35℃ |
| 输入功率Input power |
150W |
250W |
350W |
550W |
700W |
| 容积Volume |
20L |
50L |
80L |
160L |
270L |
| 内胆尺寸Interior Dimension（mm)W×D×H |
300×280×300 |
415×360×355 |
500×400×400 |
500×500×650 |
600×600×750 |
| 外形尺寸Overall Dimension (mm)D×W×H |
400×380×580 |
690×500×500 |
780×530×560 |
790×630×810 |
890×740×910 |
| 载物托架（标配）Shelves per Chamber （Normal） |
2块 |
2块 |
2块 |
3块 |
3块 |
| 定时范围Timing Range |
1～9999min |
| 备注Note |
带“A”为不锈钢内胆Specular stainless-steel chamber is marked with an "A" |
性能参数测试在空载条件下为：环境温度20℃
Specification test under no load condition：ambient temperature is 20℃
注：智能型液晶程序温度控制器为大屏幕液晶显示屏，多组数据一屏显示，使用方便，更具有人性化设计；可配RS485接口和电脑连接，通过电脑同步监控实验过程或记录实验数据。
Note:Intelligent programable temperature controller is giant-screen liquid crystal display,groups-data display in one screen,easily operation;RS485 connection may link with computer to record data and control experiment.
